Wide Range Of Silicone Thermal Conductive Pad
- Brand Name: SinoGuide
- Model Number: TCP600
- Material: Silicone&Ceramic
- Thermal Conductivity: 6.0 W/m.k
- Material Details:Full Range Of Silicone Thermal Conductive Pad 1.0-7.5W/m.k; Silicone Thermal Conductive Gap Filler Pad TCP600 Series; 6.00 W/mk High Thermal Conductivity; Low Thermal Resistance at Low Pressure; Natur
Features:
6.00 W/mk High Thermal Conductivity
Low Thermal Resistance at Low Pressure
Naturally tacky for easy application
Applications:

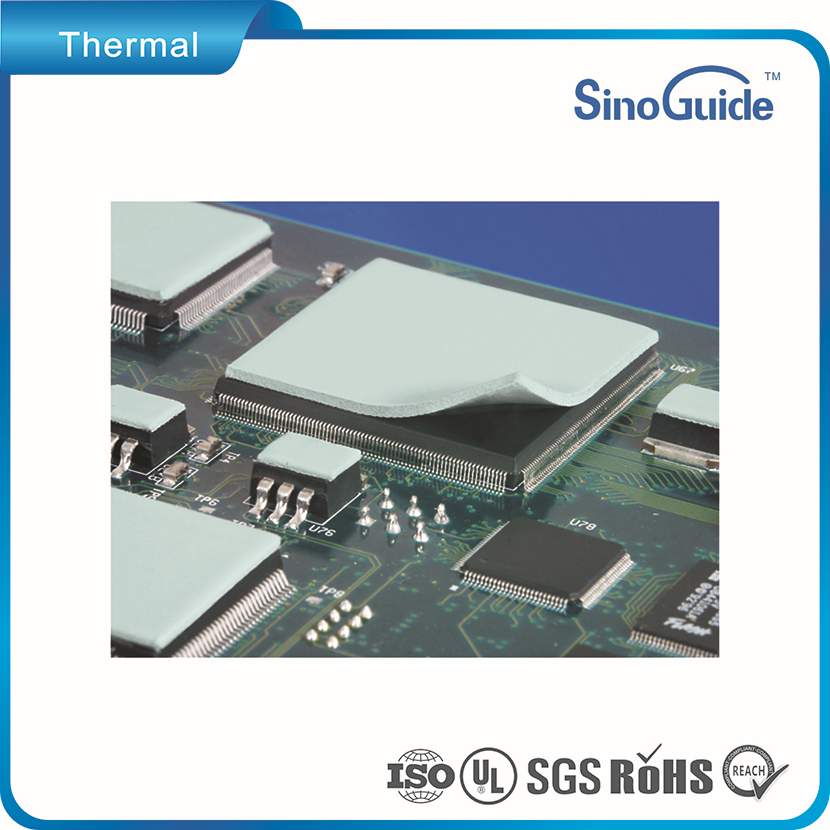

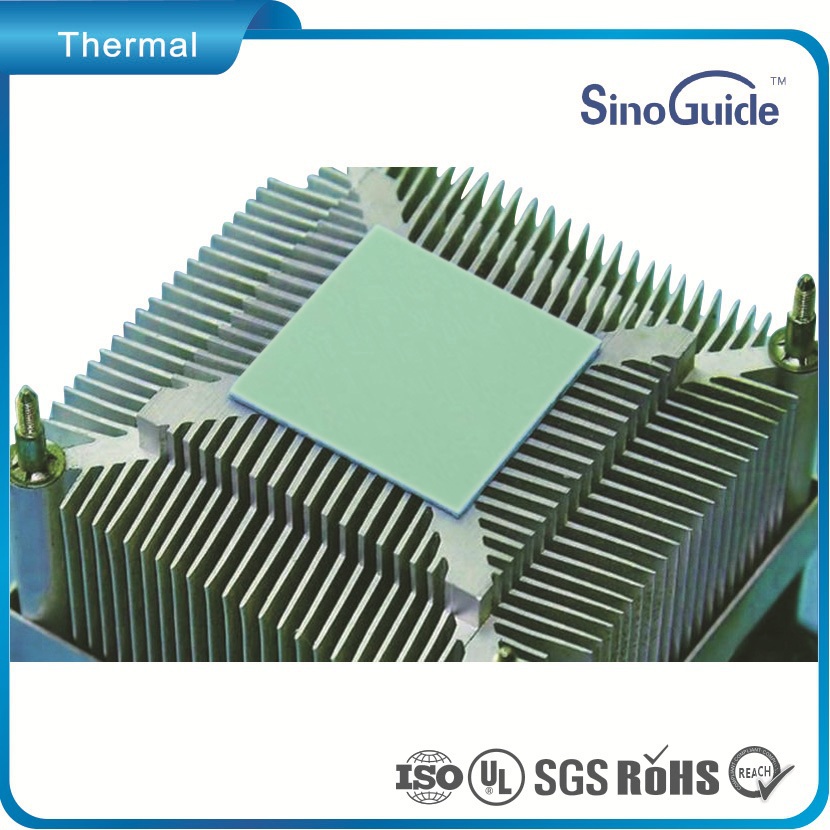

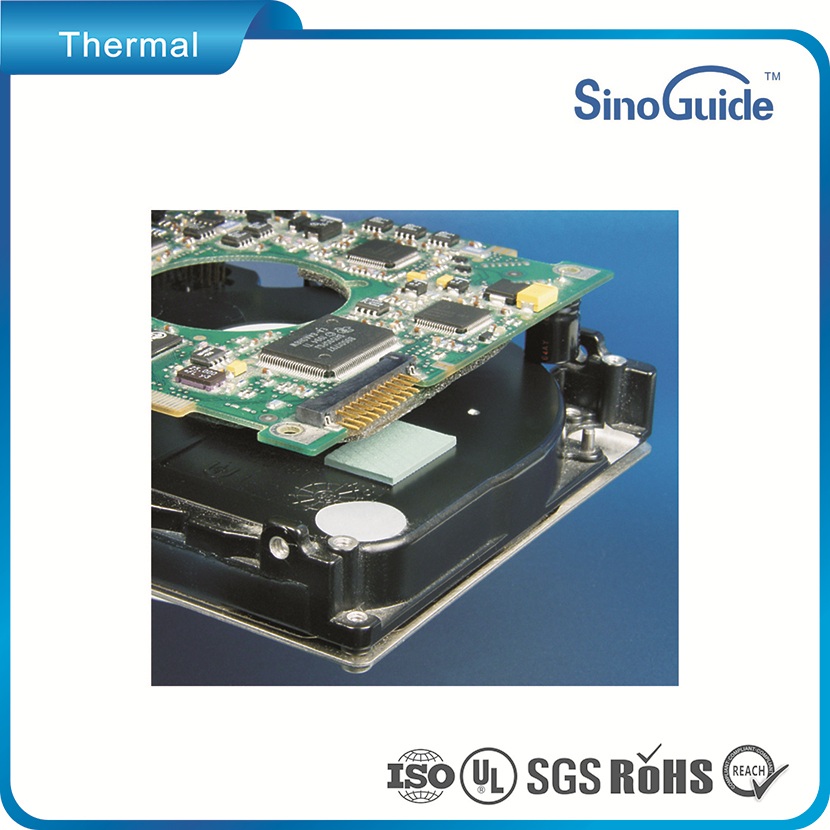

Between heat-generation component and heatsink.
Automotive engine control, Graphices Cards, Telecom device.
Wireless Hub,Military equipment, power supply.
Cooling Module, Thermal module.
Telecommunication Hardware
TYPICAL PROPERTIES OF TCP600 | ||
PROPERTY | METRIC VALUE | TEST METHOD |
Color | Light Green | Visual |
Thickness (mm) | 0.3~15 | ---- |
Hardness (Shore C) | 30 | ASTM D2240 |
Density (g/cc) | 3.7 | ASTM D792 |
Continuous Use Temp (℃) | -60 to 200 | EN344 |
ELECTRICAL | ||
Dielectric Breakdown Voltage (Vac) | ≥200 Vac/mil | ASTM D149 |
Dielectric Constant (1MHz) | 6.5 | ASTM D150 |
Volume Impedance (ohm-cm) | 6.5X1010 | ASTM D257 |
Flame Rating | V 0 | UL 94 |
THERMAL | ||
Thermal Conductivity (W/m.k) | 6.0 | ASTM D5470 |
Configurations Available:
Sheet size:200 x 400mm, 350x350mm , individual parts available
Part No. Code:
Suffix: Different Options For thermal Pad as below
“A1” suffix: One side additional adhesive such as 3M 467, 3M9448
“A2” suffix: Two sides additional adhesive such as 3M 467, 3M9448
“NA” suffix: Natural tacky
"D" suffix: one side tacky and non-tacky on the other side
"M" suffix: Fiberglass reinforcement in the middle layer
"F" suffix: Fiberglass reinforcement on top or bottom layer
Check List of Reliability Test Report for TCP600 is available after your request
Below info will be helpful for your right application
How to transfer or dissipate the heat from the heat-generating components to heat sinks?
How To Select the Right Thermal Interface Materials for your new application?
Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.
TCP300 Series - This material exhibits excellent softness, high compressibility, and natural adhesiveness. It is excellent for applications where high electrical insulation is needed.
TCP500 Series - This product has high thermal conductivity to effectively conduct heat away from sensitive components to a heat sink. The TCP500 is an excellent mid-level thermal conductive interface material.
TCP800 Series - The exceptional ability of this material to conduct heat away from sensitive components makes it applicable for use in very heat sensitive applications. The TCP800 is an excellent high-level thermal conductive interface material.

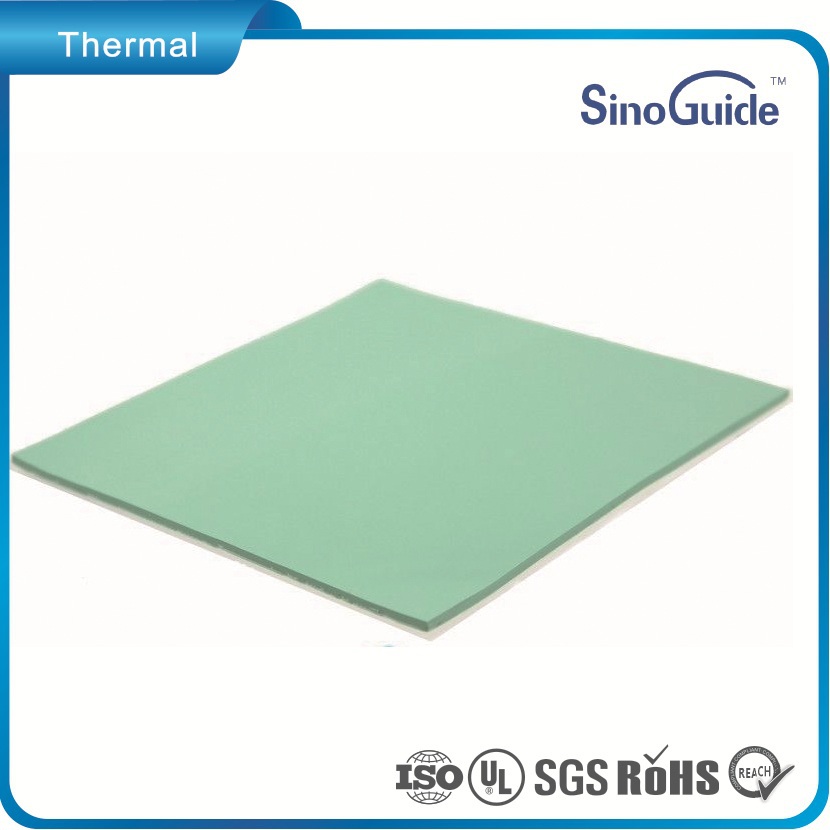

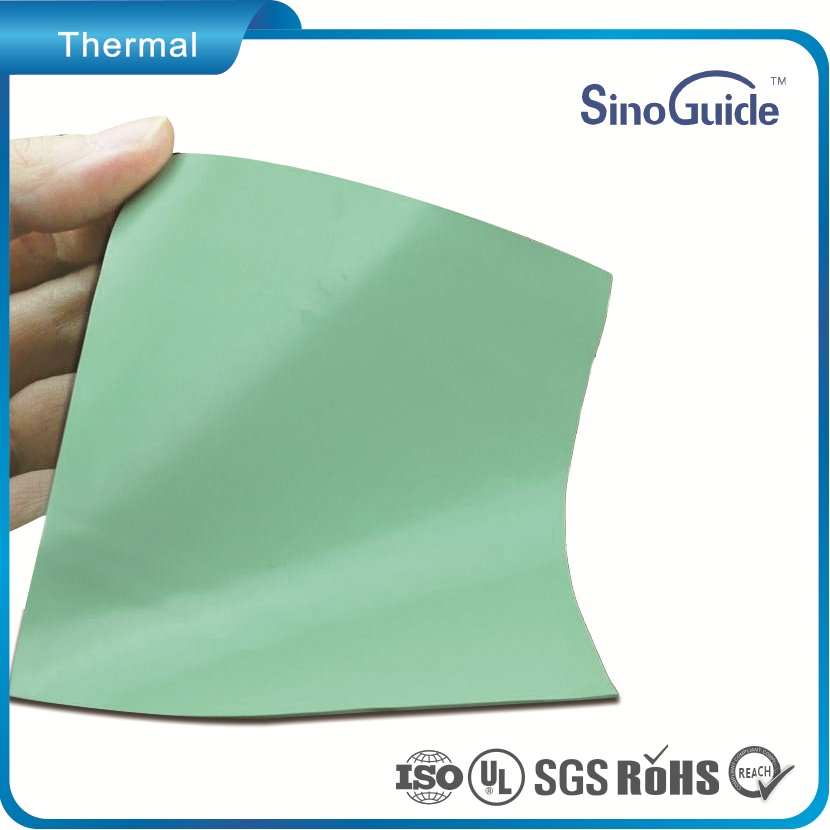

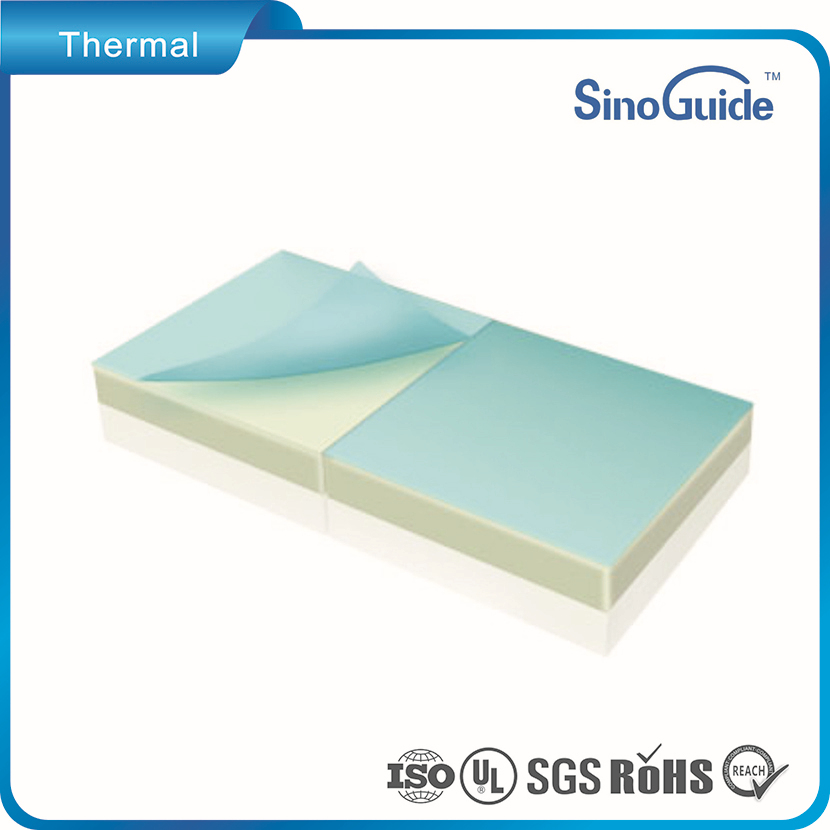

Product Photos:
Certifications:
Strong Logistics System:
Company Information:
Our Advantage:
FAQ:
1: Can I get free sample?
Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.
2:Does SinoGuide accept OEM or Customized production?
Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.
3: How to customized a sample?
If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.
4: How to ship the order?
SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.
5:Is there promotion price for big buyer?
Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
