Thermal Gap Filler Pad are generally low modulus polymer attached to the substrate such as glass fiber. It applies to semiconductor devices such as top of QFP, BGA (usually the case, several different devices share a high degree of heat sinks), between PCB and motherboard, frame or the thermal plate. The material has the shape of a high degree of adaptability, and high reliability, easy to assemble.

The TCP450 is a high-performance, low-resistance gap filler pad manufactured with a special top surface that is less sticky than the opposing surface, allowing the thermal pad to adhere to a target electrical component or opposing heat sink. This allows for quick and easy removal without ripping, warping, or damaging the interface material.

Features:

4.5 W/mk High Thermal Conductivity

Low Thermal Resistance at Low Pressure
Naturally tacky for easy application

Applications:

Between heat-generation Component and heatsink

Automotive engine control, Graphices Cards, Telecom device
Wireless Hub,Military equipment, power supply
Cooling Module, Thermal module
Server S-RAMs,BGA packages

Configurations Available:

Sheet size:200 x 400mm, 350x350mm , individual parts available

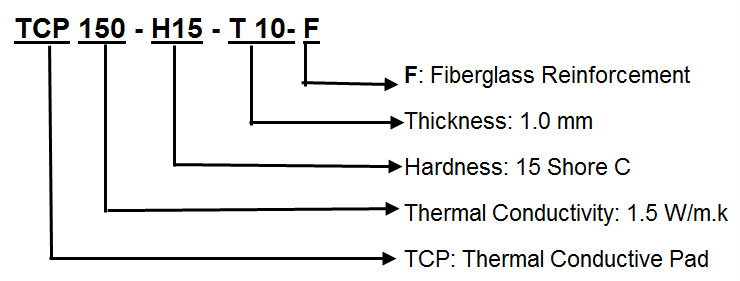

Part No. Code:

Suffix: Different Options For thermal Pad as below

"A1" suffix: One side additional adhesive such as 3M 467, 3M9448

"A2" suffix: Two sides additional adhesive such as 3M 467, 3M9448

"NA" suffix: Natural tacky

"D" suffix: one side tacky and non-tacky on the other side

"M" suffix: Fiberglass reinforcement in the middle layer

"F" suffix: Fiberglass reinforcement on top or bottom layer

Check List of Reliability Test Report for TCP450 is available after your request

Below info will be helpful for your right application

How to transfer or dissipate the heat from the heat-generating components to heat sinks?

How To Select the Right Thermal Interface Materials for your new application?

Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

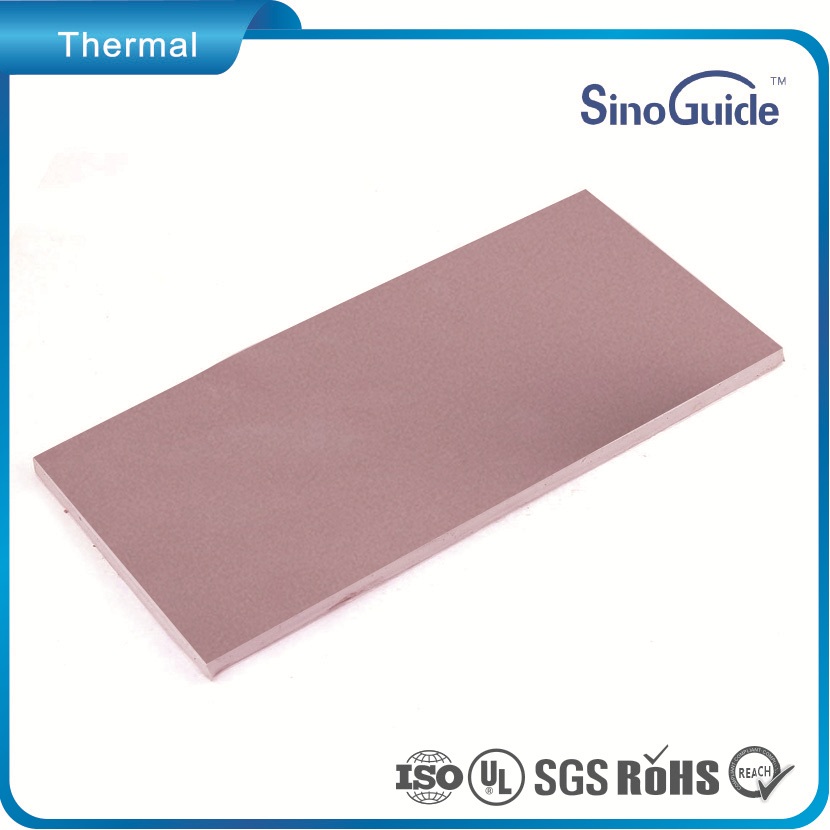

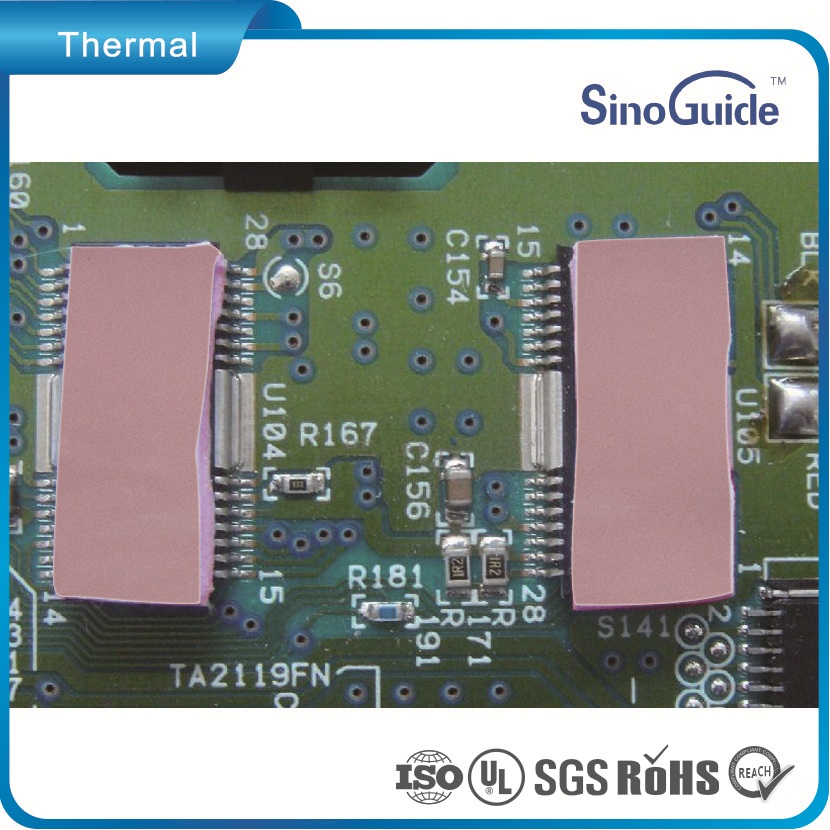

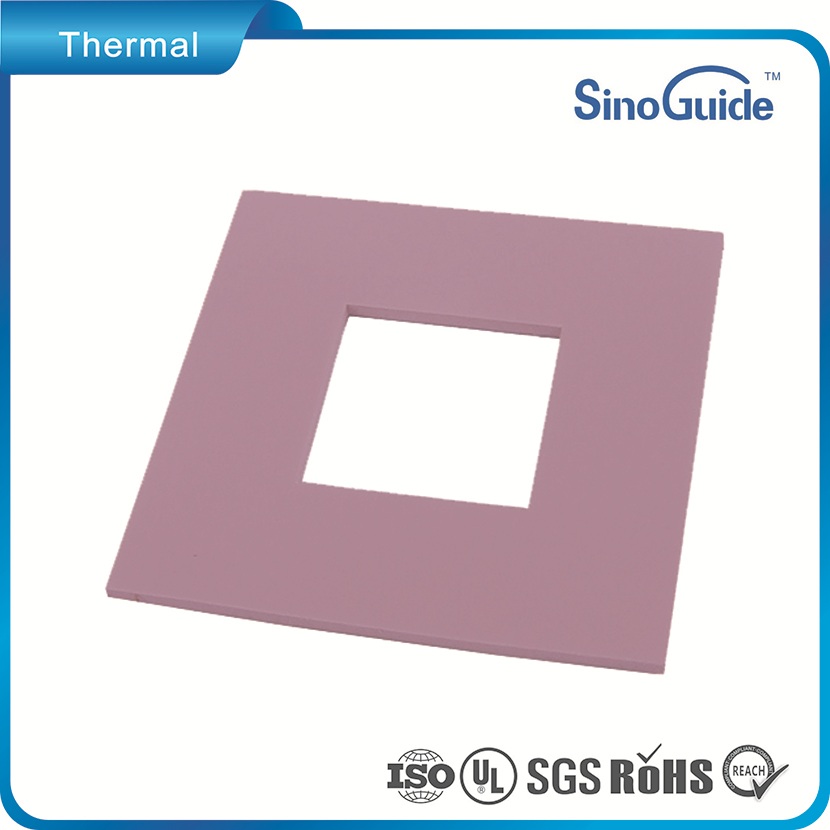

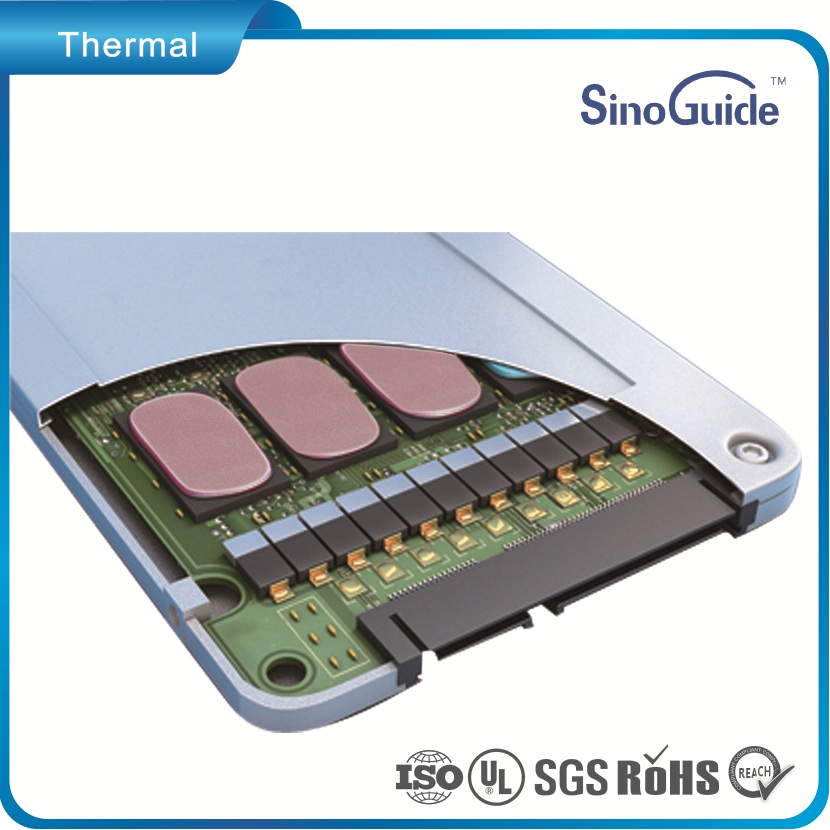

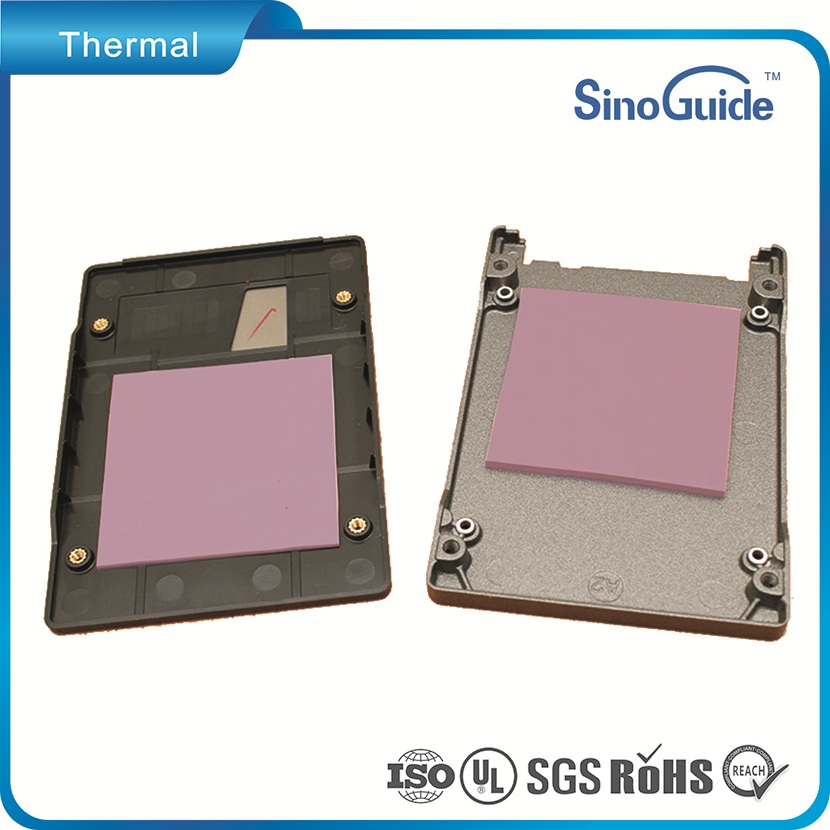

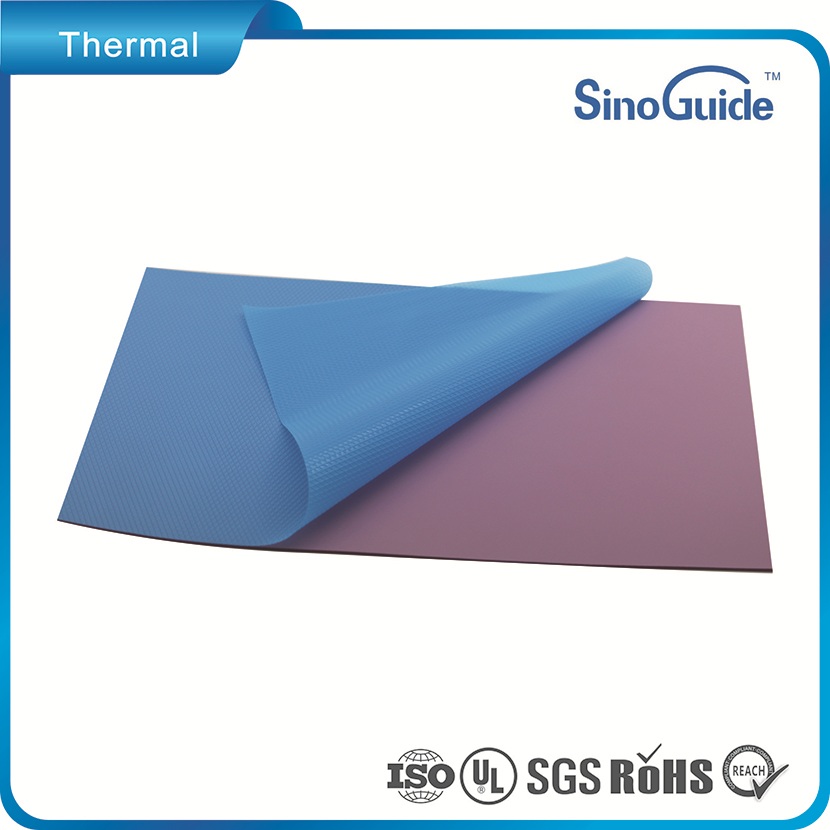

Product Photos:

Certifications:

Strong Logistics System:

Company Information:

Our Advantage:

FAQ:

1: Can I get free sample?

Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.

2:Does SinoGuide accept OEM or Customized production?

Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.

3: How to customized a sample?

If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.

4: How to ship the order?

SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.

5:Is there promotion price for big buyer?

Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
