High Compressible Low Stress Application Silicone Gap Pad
- Brand Name: SinoGuide
- Model Number: TCP100
- Material: Silicone&Ceramic
- Thermal Conductivity: 1.0 W/m.k
- Material Details: Silicon Thermal Conductive Gap Filler Pad TCP100 Series; 1.00 W/mk thermal conductivity; Low Hardness; Cost-effective which is made through advanced manufacturing process; Electrically insulating
Features:
1.00 W/mk thermal conductivity
Low Hardness
Cost-effective which is made through advanced manufacturing process
Electrically insulating
Applications:

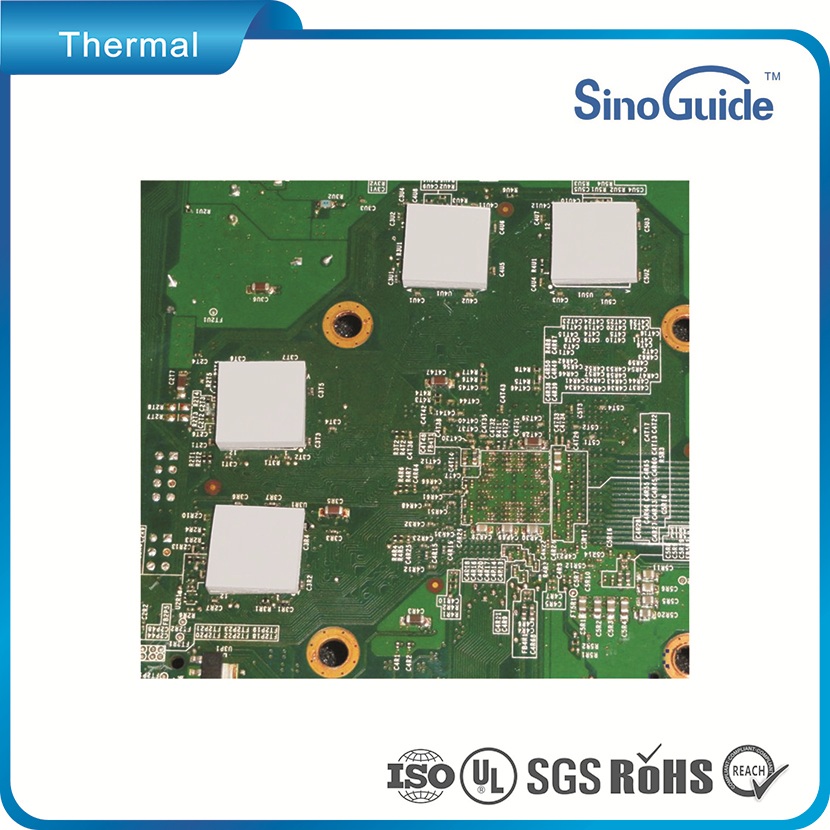

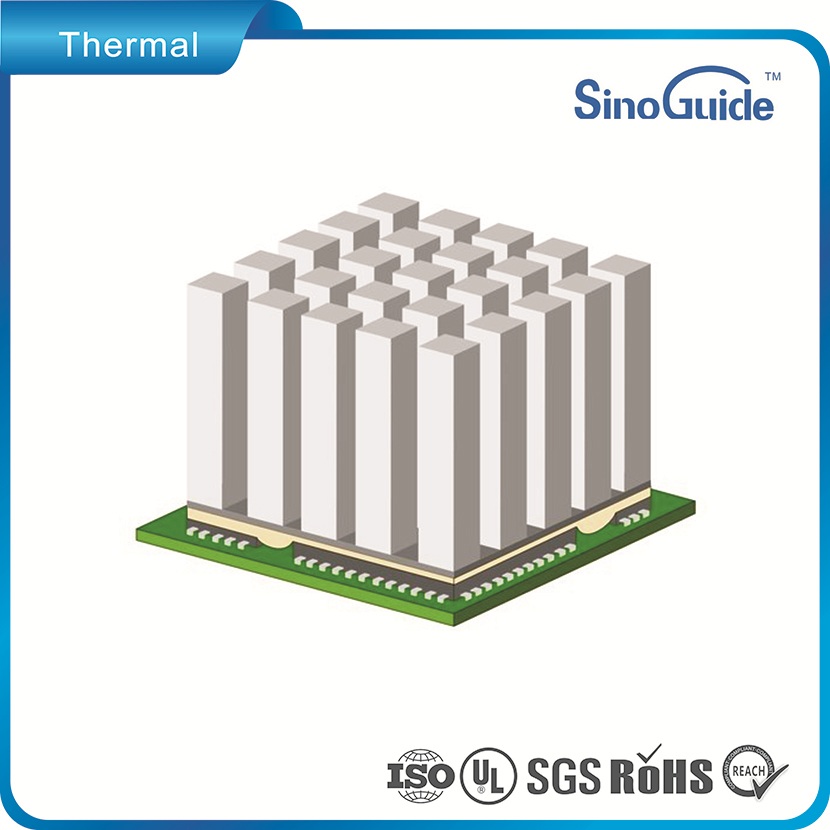

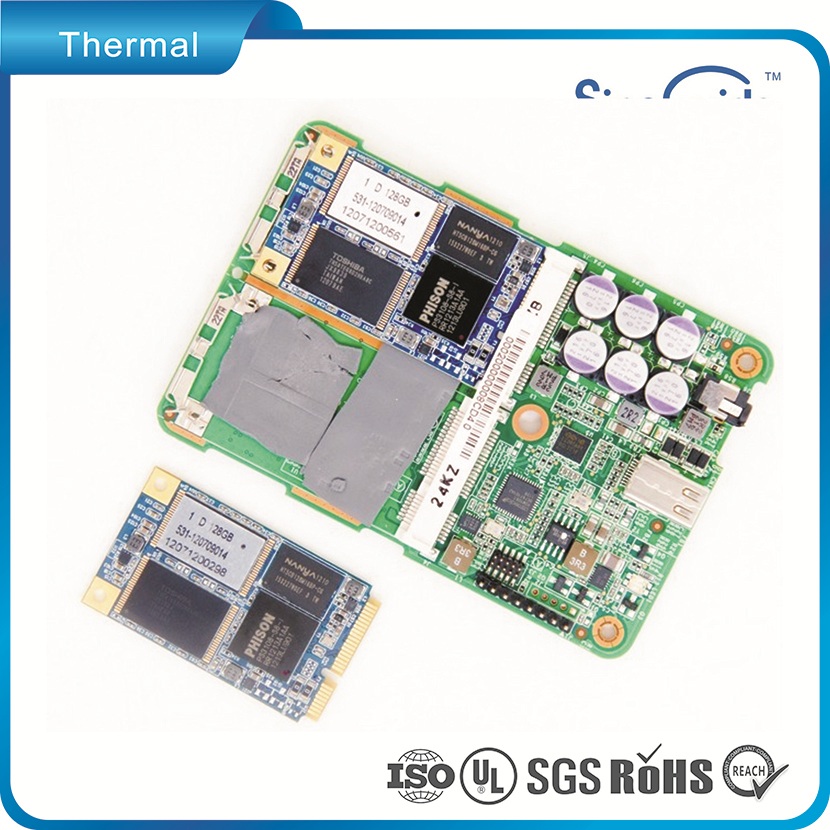

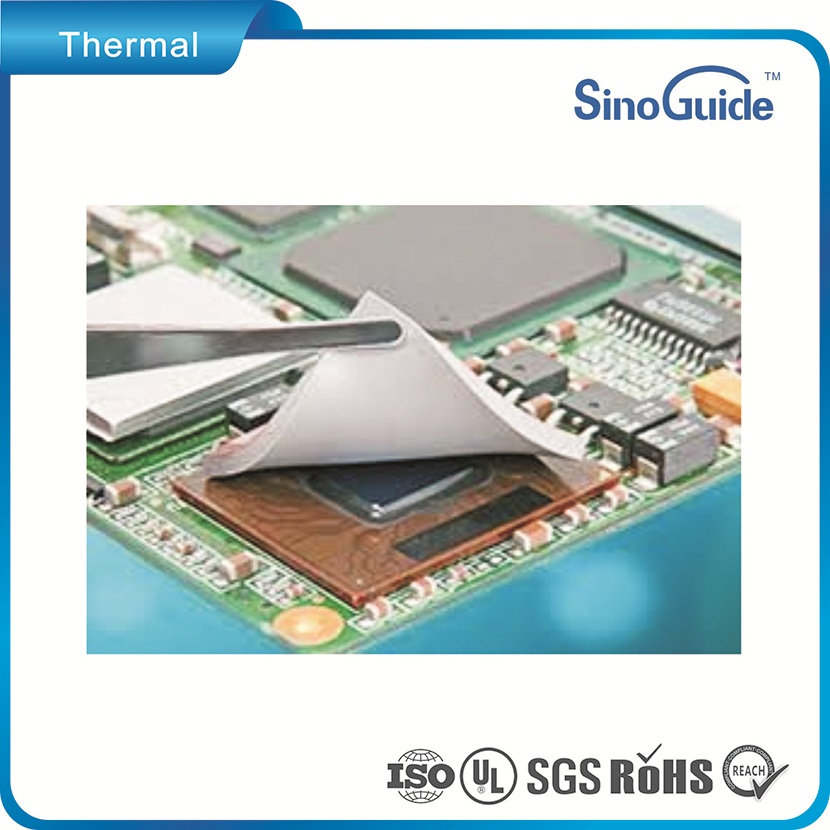

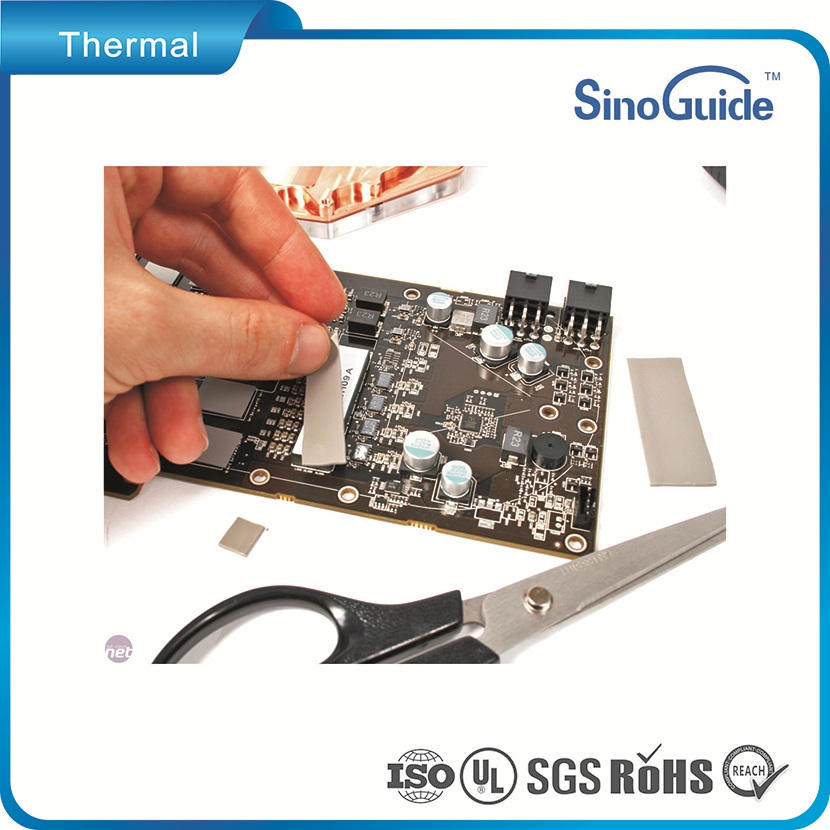

Between electronic components such as Semiconductor, IC, CPU.MOS and heatsink.
Led Lighting, LCD TV, Telecom device.
Wireless Hub, power supply.
Portable charger
T TYPICAL PROPERTIES OF TCP100 | ||
PROPERTY | METRIC VALUE | TEST METHOD |
Color | Gray | Visual |
Thickness (mm) | 0.25~15 | ---- |
Hardness (Shore C) | 25 or 35 | ASTM D2240 |
Density (g/cc) | 1.8 | ASTM D792 |
Tensile Strength (KN/m) | 2.2 | ASTM D412 |
Continuous Use Temp (℃) | -40 to 200 | EN344 |
ELECTRICAL | ||
Breakdown Voltage (Kv/mm) | ≥6.0 | ASTM D149 |
Dielectric Constant (1MHz) | 4.5 | ASTM D150 |
Volume Impedance (ohm-cm) | 1.5 x1016 | ASTM D257 |
Flame Rating | V 0 | UL 94 |
THERMAL | ||
Thermal Conductivity (W/m.k) | 1.0 | ASTM D5470 |
Configurations Available:
Standard Sheet and Roll Sizes:
Sheet size:200 x 400mm, 350x350mm , individual parts available Roll Form available(300mm width)
Part No. Code:
Suffix: Different Options For thermal Pad as below
"A1" suffix: One side additional adhesive such as 3M 467, 3M9448
"A2" suffix: Two sides additional adhesive such as 3M 467, 3M9448
"NA" suffix: Natural tacky
"D" suffix: one side tacky and non-tacky on the other side
"M" suffix: Fiberglass reinforcement in the middle layer
"F" suffix: Fiberglass reinforcement on top or bottom layer
Silicone thermal gap pad transfers heat with a thermal conductivity of 1.0 W/m.K and a very low thermal resistance of 0.36°C in.2/W at 72.5 psi. The 0.5-mm-thick flame-retardant TIM is available in sheets up to 400 x 200 mm. (Contact company for price and availability).
Check List of Reliability Test Report for TCP100 is available after your request
Below info will be helpful for your right application
How to transfer or dissipate the heat from the heat-generating components to heat sinks?
How To Select the Right Thermal Interface Materials for your new application?
Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

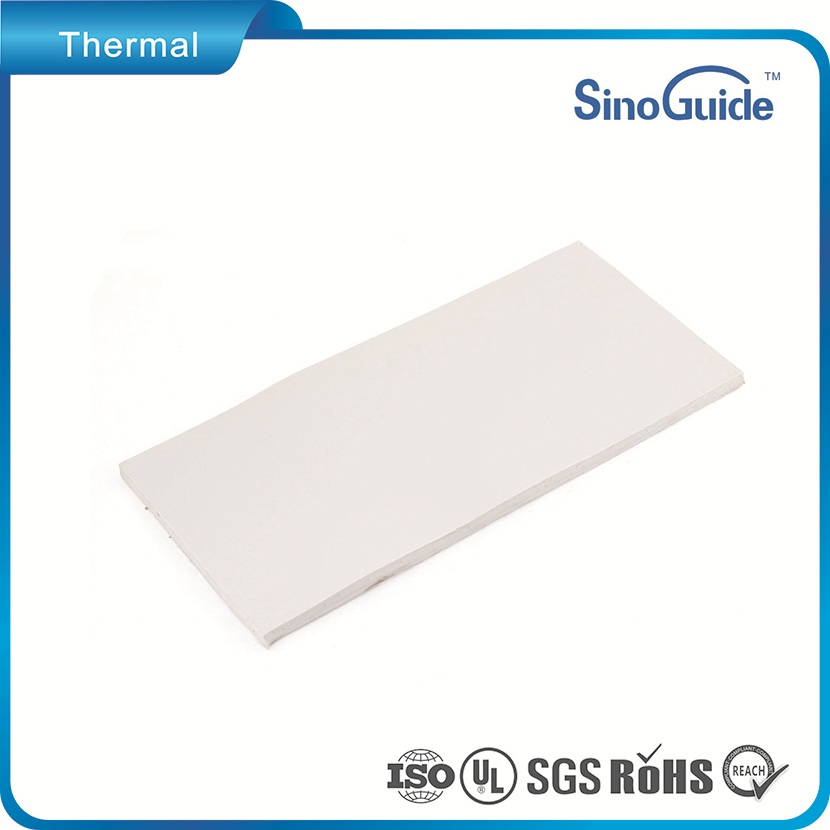

Product Photos:
Certifications:
Strong Logistics System:
Company Information:
Our Advantage:
FAQ:
1: Can I get free sample?
Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.
2:Does SinoGuide accept OEM or Customized production?
Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.
3: How to customized a sample?
If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.
4: How to ship the order?
SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.
5:Is there promotion price for big buyer?
Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
