Thermal Conductivity 0.2WLocation:Home > Thermal Conductivity 0.2W
◇ Thermal Conductivity: 0.20W/m.k
◇ High compressible closed-cell silicone foam
◇ Thermal insulating and low compressure Set
◇ High compressible closed-cell silicone foam
◇ Thermal insulating and low compressure Set
Typical Applications Include:
Ultra Soft and Highly compressible for low compression force application
High Performance of sealing and gasket, super insulator, vibration damping
Typical Properties of This Materials:
Typical Properties of TCP20 Thermal Insulating Materials | |||||||
Properties | Units | TCP20Series | Test Method | ||||
Material | --- | Silicone Foam | --- | ||||
Color | --- | Gray | Visual | ||||
Cellular structure | --- | Closed | --- | ||||
Density | g/cm3 | 0.25 ~ 0.8(+/-0.1) | ASTM D792 | ||||
Hardness | Shore C | 20~45 (+/-5) | ASTM-D2240 | ||||
Tensile Strength | 'Mpa | ≥0.4 | ASTM D412 | ||||
Elongation | % | ≥200 | ASTM D412 | ||||
ELECTRICAL | |||||||
Volume Resistivity | Ω.cm | 1.5×1015 | ASTM D149 | ||||
Dielectric Strength | KV/mm | ≥15 | ASTM-D149 | ||||
Flame Rating | V 0 | UL 94 | |||||
THERMAL | |||||||
Thermal Conductivity | W/m.k | 0.2 | ASTM D5470 |
Configurations Available:
Standard Sheet and Roll Sizes:
Sheet size:200 x 400mm, 350x350mm , individual parts available Roll Form available(300mm width)

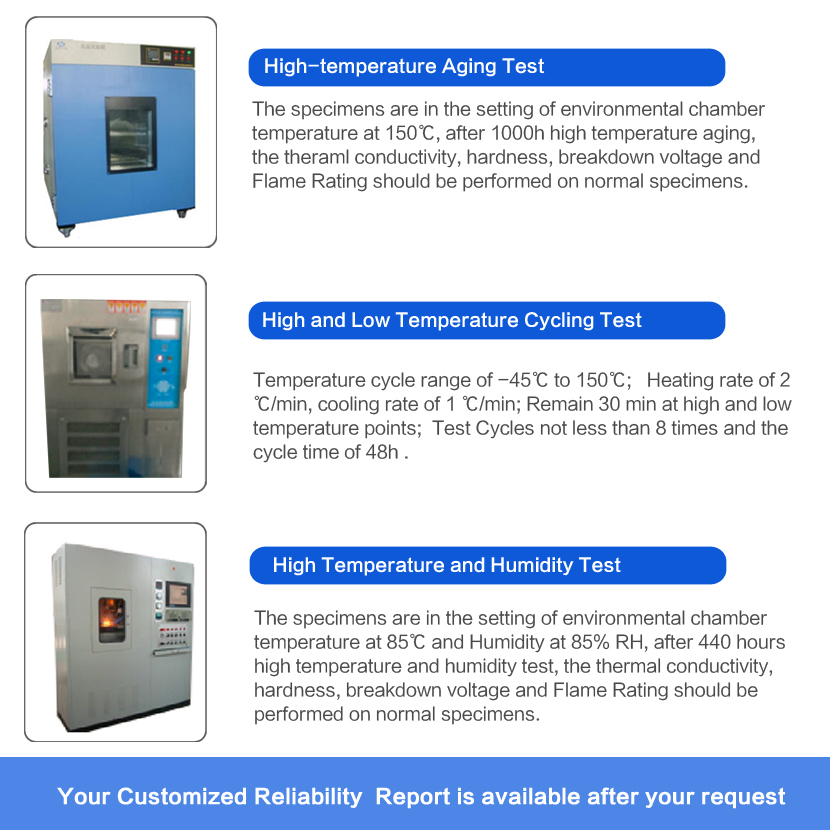

Check List of Reliability Test Report for TCP20 is available after your request
