1.2W/m.K & Strong Adhesion Thermal Release Adhesive Tape For PCB LEDs
- Brand Name: SinoGuide
- Model Number: TCT120
- Material: Acrylic Polymer
- Thermal Conductivity: 1.2 W/m.k
- Material Details:Thermal Release Adhesive Tape For Electronic Components; 1.2W/m.K & Strong Adhesion Thermal Release Adhesive Tape For PCB LEDs; 1.2 W/mk Thermal Conductivity
Features:
- 1.2 W/mk Thermal Conductivity
- High conformability and affordable prices
- Double-sided, pressure sensitive adhesive tape
- Ultra low thermal resistance as of 0.038-0.075 C-in2/W
Applications:
- Between heat-generation component and heatsink
- Mount heat sink/spreader onto drive process/power converter
- In all applications where a metal housing is used as heatsink without screw
TYPICAL PROPERTIES OF TCT120 | ||
PROPERTY | METRIC VALUE | TEST METHOD |
Color | White | Visual |
Thickness (mm) | 0.15; 0.20; 0.25;0.50 | ---- |
Adhesive Type | Acrylic Polymer | ---- |
Carrier | w or w/o Fiberglass | ---- |
Hardness (Shore A) | 40 | ASTM D2240 |
Density (g/cm2) | 1.3 | ASTM D792 |
Tensile Strength (lbs/in ) | 180 | ASTM E1269 |
Continuous Use Temp (℃) | -40 ~ 150(short term) 90(long term) | EN344 |
ELECTRICAL | ||
Dielectric Breakdown Voltage (Vac) | ≥3 kVac/m | ASTM D149 |
Dielectric Constant (1MHz) | 5 | ASTM D150 |
Volume Impedance (ohm-cm) | 1 x1013 | ASTM D257 |
THERMAL | ||
Thermal Conductivity (W/m.k) | 1.2 | ASTM D5470 |
Check List of Reliability Test Report for TCT120 is available after your request
Below info will be helpful for your right application
How to transfer or dissipate the heat from the heat-generating components to heat sinks?
How To Select the Right Thermal Interface Materials for your new application?
Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

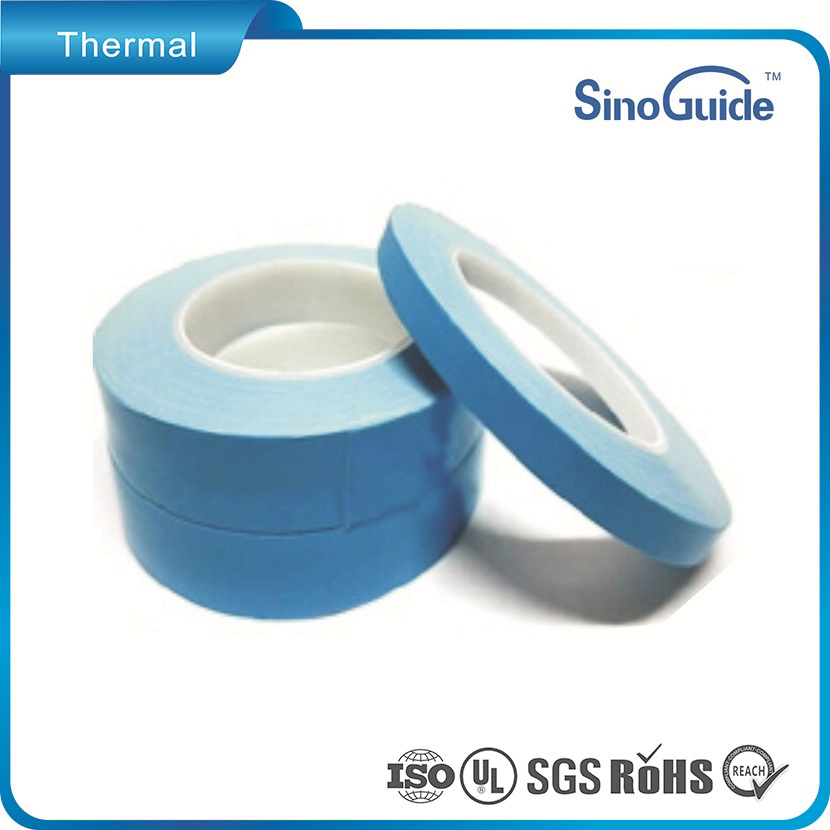

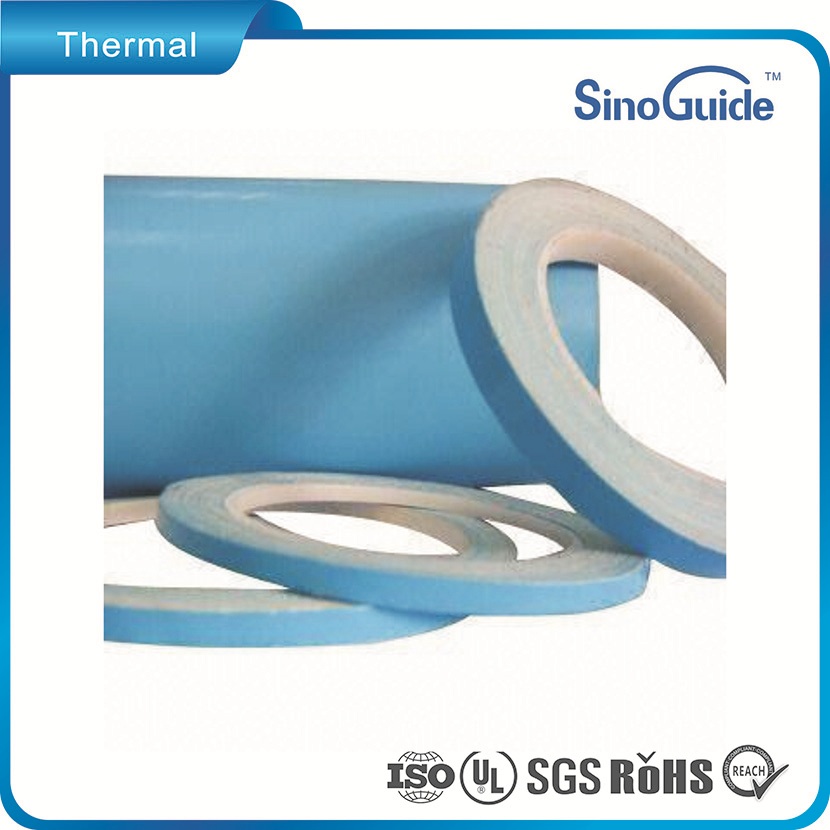

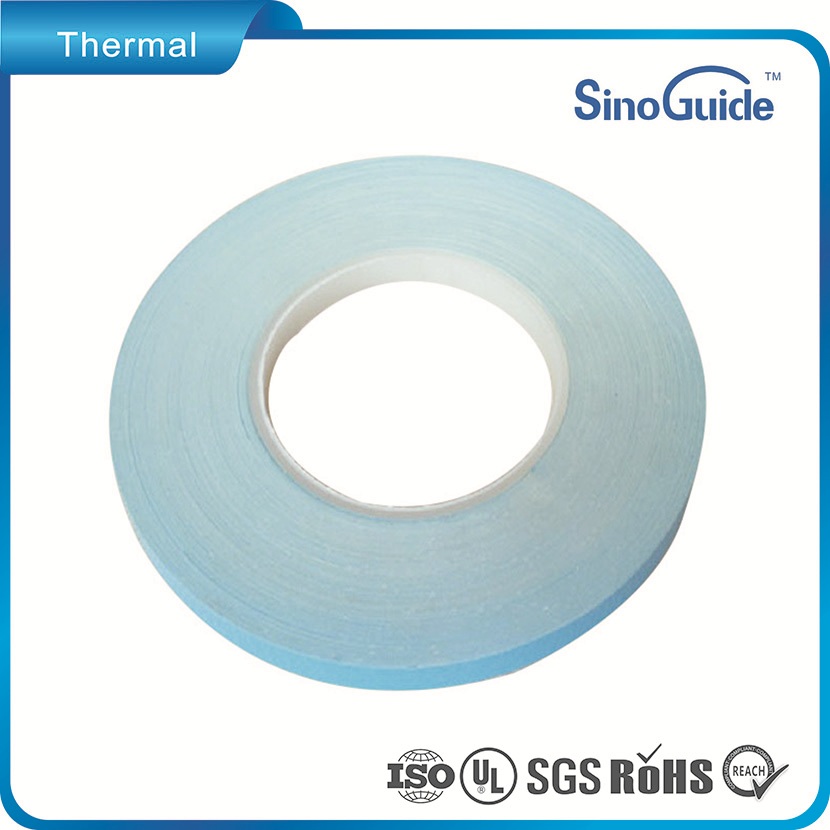

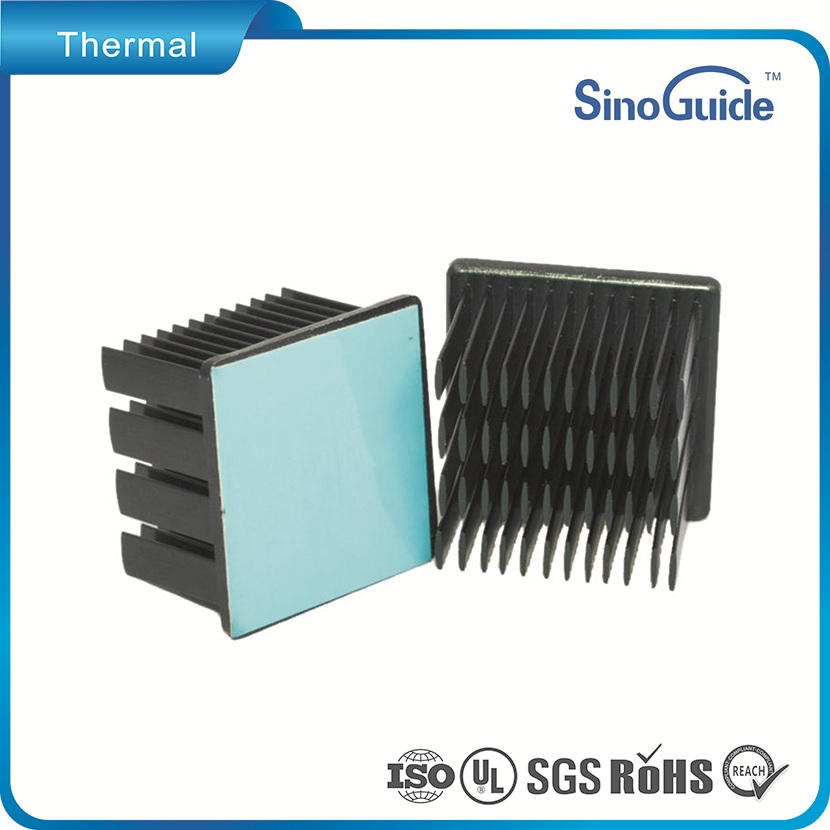

Product Photos:
Company Information:
Our Advantage:
FAQ:
1: Can I get free sample?
Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.
2:Does SinoGuide accept OEM or Customized production?
Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.
3: How to customized a sample?
If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.
4: How to ship the order?
SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.
5:Is there promotion price for big buyer?
Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
